Sub-Zero 600 Series Repair in Campbell (BI-30 / BI-36 / BI-42 / BI-48)

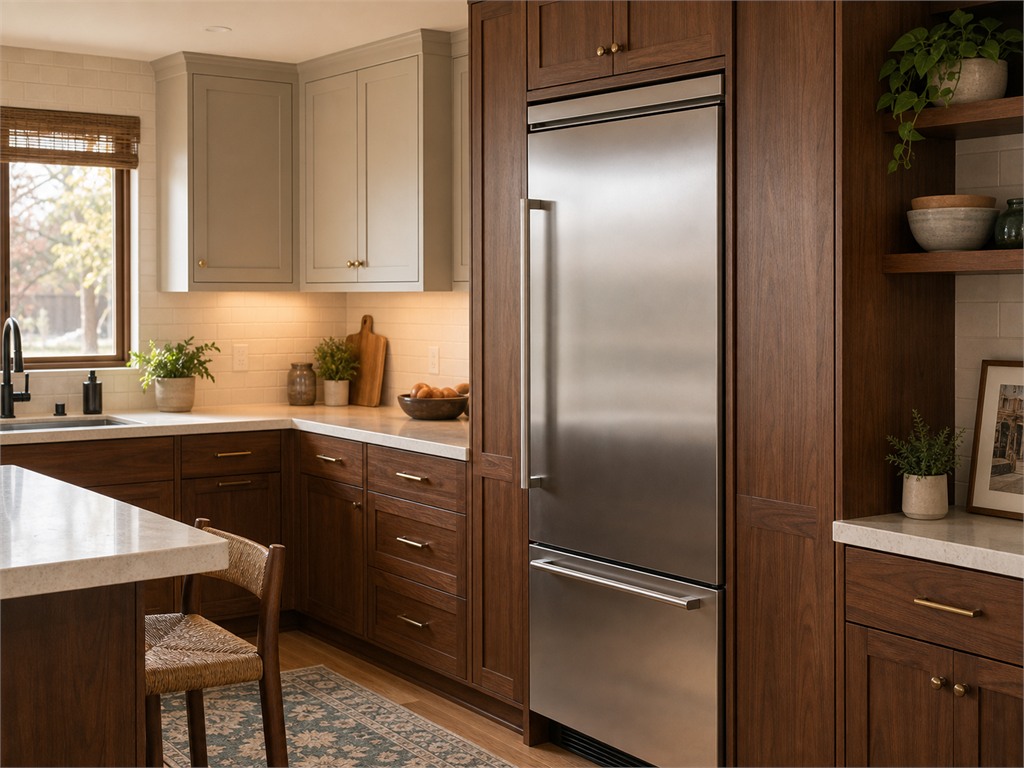

The Sub-Zero 600 series is the original Built-In platform — the BI-30, BI-36, BI-42 and BI-48 over-and-under and side-by-side units behind custom panels in older Campbell kitchens. Most are now 15 to 25 years old, so the calls cluster on hardened door gaskets, packed condensers and worn condenser fans, aging control boards, and one of the two dual compressors losing charge. Nearly all are repairable. We diagnose the real fault first, fit genuine OEM Sub-Zero parts, and waive the $89 service call with the repair.
What the 600 series actually is
The Sub-Zero 600 series is the company’s original Built-In refrigeration platform, sold for roughly two decades and still running in a large share of Campbell’s established kitchens. On the tag it reads BI-30, BI-36, BI-42 or BI-48 — the number is the cabinet width in inches — followed by a suffix that tells us the configuration: S for side-by-side, O for over-and-under (freezer on the bottom), and FD for the later French-door fresh-food layout. A "600 series repair" and a "BI-36 repair" are the same conversation; the BI number just pins down your exact cabinet.
These units were the premium built-in standard across San Tomas, the older streets near Campbell Avenue, and the Cambrian-adjacent neighborhoods toward the Los Gatos Creek Trail. They were built around dual refrigeration — two completely separate sealed systems, one for the fridge and one for the freezer — which is exactly why a 25-year-old 600 series is usually worth repairing instead of replacing: the cabinet and dual-evaporator design are still excellent, and the failures are wear items, not the whole machine.
If your unit is a tall single-door column rather than a 600-series over-and-under or side-by-side, you want our integrated column repair page instead. For a broad view of the whole classic line, the Classic BI-series repair page covers the 600 and 700 platforms together.
Sub-Zero 600 series model guide
Match the BI number on your tag to its width and layout. The model and serial label is inside the fresh-food compartment — usually the upper-left wall or the ceiling.
| Model | Width / layout | Configuration | Common age-related fault |
|---|---|---|---|
| BI-30 / 30U | 30" all-refrigerator or all-freezer column | Single-temperature tall unit, often paired side-by-side | Door gasket, evaporator frost, fan motor |
| BI-36S / BI-36UFD | 36" side-by-side or French-door over-and-under | Dual refrigeration, ice/water in the door | Ice maker module, dispenser, condenser fan |
| BI-42S / BI-42SD | 42" side-by-side | Dual refrigeration, large fresh-food side | Door sag and gasket, control board, condenser |
| BI-48S / BI-48SD | 48" side-by-side (the flagship width) | Dual refrigeration, twin doors with ice in door | Dual-compressor charge loss, hinges, gaskets |
| BI-36O / BI-36UO | 36" over-and-under (freezer drawer below) | Dual refrigeration, bottom freezer drawer | Defrost drain, drawer gasket, evaporator fan |
A suffix you do not recognize is normal — Sub-Zero used many variants. Snap a photo of the full tag before you call and we confirm the exact parts your 600-series unit takes.
Age-specific faults on a 600-series built-in
Because nearly every 600 series in Campbell is now 15–25 years old, the failures follow a predictable wear curve. These are the calls we see most.
Hardened door gaskets
The magnetic gasket loses its snap somewhere around the 10–15-year mark, letting warm room air in. You see edge frost, sweating doors, and a unit that runs nonstop. New OEM gaskets and a door re-align fix most "running constantly" 600s.
Condenser fan & packed coil
The grille-top condenser fills with two decades of dust and pet hair, and the condenser fan motor wears out. A choked coil makes the compressor run hot and the box run warm — routinely misread as a dead sealed system on an older unit.
Aging control boards
Original 600-series control and power boards age out, causing erratic temperatures, lights that stay lit, or a unit that ignores the dial. Most are still serviceable with genuine OEM boards rather than a full replacement.
Dual-compressor charge loss
After 15+ years either of the two sealed systems can tire or slowly lose charge. Pressure and electrical testing tells us which of the two circuits is at fault before any sealed-system work is ever quoted.
Defrost & drain trouble
A failed defrost heater, thermostat or timer lets the evaporator ice over until airflow chokes. A blocked defrost drain shows as water or an ice slab under the freezer — common on the over-and-under BI-36O.
Door sag & hinge wear
Heavy custom-panel doors wear the hinge cams over two decades, so the door drops and the gasket stops contacting. Hinge cartridges plus a careful re-alignment bring the seal back without replacing the door.
Why diagnosis comes before any 600-series part
The single most expensive mistake on a 600-series unit is replacing a dual compressor that was never bad. A frost-blocked evaporator, a failed evaporator fan, or a defrost fault produces the exact same "fridge warm, freezer fine" complaint as a tired sealed system — and the cheap fault is far more common on an aging built-in. We test airflow, the defrost circuit and both sealed systems with gauges before quoting any compressor work.
On a 600 series the model and serial tag drives everything. It tells us whether you have a BI-36S or a BI-36UFD, which gasket profile the door takes, and which fan, board or ice-maker module is correct for your build year. We fit genuine OEM Sub-Zero parts only, because the platform’s defrost timing and door tolerances are matched to factory components — a generic gasket or fan will throw temperatures off and relight the service light.
Snap a photo of the tag inside the fresh-food door before you call. It lets us confirm parts availability and give a tighter planning estimate up front, and every 600-series repair carries a 365-day labor warranty. Not sure on pricing? Our cost guide walks through the ranges.
600 series symptom → cause → action
Match what your BI-30/36/42/48 is doing to the most likely cause and the right next step.
| Symptom | Likely cause | What we do |
|---|---|---|
| Refrigerator warm, freezer fine | Frosted evaporator, failed evap fan, or defrost fault | Test the defrost circuit and evap fan, restore airflow first |
| Running constantly, edge frost | Hardened or torn door gasket, sagging door | Fit an OEM gasket and re-align the door and hinges |
| Both sides slowly warming | Packed condenser or weak condenser fan motor | Deep-clean the grille-top coil, test and replace the fan |
| Water or ice under the freezer | Blocked defrost drain or failed defrost heater | Clear the drain line, test the heater and thermostat |
| One compartment will not cool at all | Charge loss in one of the two sealed systems | Pressure-test both circuits before any compressor quote |
| Lights or temps acting erratic | Aging control board or magnetic door switch | Diagnose the board and switch electrically, fit OEM parts |
| No ice from the in-door maker | Inlet valve, fill tube or worn ice-maker module | Check the water path before replacing the module |
On a dual-refrigeration 600 series, a warm fridge with a perfect freezer is almost never the compressor — it is airflow or defrost. Diagnosis first is what keeps a 600-series repair from being paid for twice.
$89 service call, waived when you book the repair. A 365-day warranty on all labor, genuine OEM Sub-Zero parts matched to your exact BI model, and a cabinet-safe pull-out that protects your floor and custom panels — plus a symptom check by phone before we drive out.
600 series repair: planning estimates
Ballpark ranges for the work we do most on BI-30/36/42/48 built-ins. These are planning figures, not quotes — the on-site diagnosis sets the real price, and the $89 service call is waived with the repair.
| Service in Campbell | Planning range | Typical time | Notes |
|---|---|---|---|
| Service call / diagnostic | $89 (waived with repair) | 45–90 min | Model, temperatures, airflow, sealed-system & electrical checks |
| Ice maker / water line | $275–$850 | 1–3 hrs | Inlet valve, fill tube or ice-maker module |
| Door gasket / frost line | $400–$900 | 1–3 hrs | Depends on model and gasket availability |
| Control board / sensor | $350–$1,250 | 1–4 hrs | Quoted after electrical diagnosis |
| Compressor / sealed system | $1,450–$3,600 | 2–6 hrs + parts | Requires pressure & electrical evidence |
These are planning estimates, not quotes — final pricing depends on model, parts, access and on-site diagnosis. The $89 service call is waived when you approve the repair.
Repair vs. replace on an older 600 series
Most Campbell homes with a 600 series were built or remodeled around it — the cabinet opening, the panel sizes, and the water and electrical positions were all set to that specific BI cabinet. Pulling a sound built-in to chase a $400 gasket or a $300 fan motor rarely makes sense, and a true replacement is closer to a small remodel than a swap.
Our rule of thumb stays simple. A 600 series with a healthy cabinet and at least one good sealed system is almost always worth repairing — gaskets, hinges, fans, defrost parts, boards and ice-maker components are all standard wear items. The honest replace conversation only comes up when both dual-refrigeration sealed systems are failing on a very high-hour BI-48, and even then we lay out the numbers before you decide.
Keeping a 600 series alive is mostly about airflow and gaskets. Our Sub-Zero maintenance guide covers the condenser cleaning and door checks that prevent most of these failures, and if the in-door ice maker is the complaint, start with the ice maker troubleshooting page. If a warm box is putting groceries at risk, ask about same-day Sub-Zero repair — we carry common 600-series gaskets, fans, sensors and ice-maker parts on the van.
Reviews
600-series repairs around Campbell
Independent Sub-Zero repair · Campbell & the Santa Clara Valley
Our BI-48 side-by-side had been running nonstop for weeks and frosting along the door edges. They fitted new OEM gaskets, re-aligned both sagging doors, and the $89 service call came off once we approved it. Twenty-two years old and it cools like new again.
BI-36 over-and-under, fridge warm but freezer perfect. I was bracing for a compressor replacement. Turned out to be a frosted evaporator and a tired defrost heater — fixed the same week with genuine parts and a 365-day labor warranty. Honest diagnosis saved us thousands.
Our 600-series BI-42 was running hot on top and cycling constantly. Another company wanted to replace the sealed system. These folks found a packed condenser and a failing fan motor instead, cleaned it out and swapped the fan. Fair price and they protected the floor the whole time.
BI-48 control board was throwing odd temperatures and the lights stayed on. They diagnosed it electrically and fitted an OEM board rather than guessing. The board had to be ordered so it took a second visit, but it has run flawlessly since. Would call again.
FAQ
Sub-Zero 600 series repair FAQ — Campbell
What is the Sub-Zero 600 series and how do I know I have one?
The 600 series is Sub-Zero’s original Built-In platform, tagged BI-30, BI-36, BI-42 or BI-48 — the number is the cabinet width in inches. The model and serial label is inside the fresh-food compartment, usually on the upper-left wall or the ceiling. If your unit is an over-and-under or side-by-side built-in fitted behind custom panels and is roughly 12–25 years old, it is almost certainly a 600 series.
What is the difference between a BI-36, BI-42 and BI-48 repair?
The repairs are the same family of work — the BI number only changes the cabinet width and how heavy the doors are. Wider units like the BI-48 carry more door weight, so hinge wear and door sag show up sooner, and they have two full sealed systems to test. A BI-36 may be a side-by-side or a French-door over-and-under, which changes the ice-maker and drain layout. We confirm the exact suffix from your tag before quoting parts.
My 600 series fridge is warm but the freezer is fine — is the compressor dead?
Almost certainly not. On a dual-refrigeration 600 series this is nearly always airflow or defrost: a frosted-over evaporator, a failed evaporator fan, or a defrost heater or thermostat fault stops cold air reaching the refrigerator side while the freezer keeps working. We test the defrost circuit and the evaporator fan first, which resolves most of these calls without any sealed-system work.
How long do the condenser fan and gaskets last on a 600 series?
The grille-top condenser should be cleaned every year or two, and the condenser fan motor often wears out somewhere past the 12–15-year mark. The magnetic door gaskets typically harden or tear around 10–15 years, sooner if the door has begun to sag. Both are standard OEM parts and both are far cheaper than the false "sealed system" diagnosis they are often mistaken for.
Are the dual compressors on a 600 series worth repairing?
Usually, yes. The 600 series uses two separate sealed systems, so even if one circuit has lost charge after 15+ years, the cabinet and the other system are often still sound. We pressure-test both circuits before quoting any compressor work. A single sealed-system repair is far cheaper than a five-figure built-in replacement, and we only recommend replacing the unit when both systems are failing on a very high-hour cabinet.
Do you use genuine Sub-Zero parts on a 600 series, and can you pull it safely?
Yes to both. We fit genuine OEM Sub-Zero gaskets, hinge cartridges, fan motors, defrost components, control boards and ice-maker parts so an older 600 keeps its designed tolerances and control logic. When a unit needs to come out, we protect the floor and cabinet sides and ease it out on its rollers so the custom panels are not stressed. Every repair carries a 365-day labor warranty.
