Sub-Zero Classic BI-Series Repair in Campbell (600 & 700 Series)
The classic Sub-Zero Built-In line — BI-30, BI-36, BI-42 and BI-48, built on the 600 and 700 platforms — is a dual-refrigeration workhorse that now runs in plenty of 12–25-year-old Campbell kitchens. Aging units show worn door gaskets and frost, sagging doors, dirty condensers, defrost or drain trouble, and tired dual compressors. Most are very repairable. A Campbell Sub-Zero specialist diagnoses the real fault before quoting parts — $89 service call, waived with repair.
What the classic Built-In line covers
Sub-Zero’s classic Built-In (BI) refrigerators are the 36-, 42- and 48-inch over-and-under and side-by-side units built on the 600 and 700 series — the models stamped BI-30, BI-36, BI-42 and BI-48 on the tag inside the fresh-food door. They were the standard premium built-in for roughly two decades, so most of the Sub-Zeros tucked into San Tomas and older Downtown Campbell kitchens belong to this family.
What makes them last is dual refrigeration: two separate sealed systems, one for the refrigerator and one for the freezer, so each compartment holds its own humidity and temperature. That same design is why a classic BI is usually worth repairing rather than replacing — the cabinet, the dual-evaporator layout, and the custom-panel doors are still excellent, and the failures tend to be wear items, not the whole machine.
If your unit is a tall single-door column rather than an over-and-under built-in, the newer platform is covered on our integrated column repair page instead.
Common faults on a 12–25-year-old classic BI
The wear pattern is consistent across BI-30/36/42/48 and the 600/700 series. These are the calls we see most on aging Campbell built-ins.

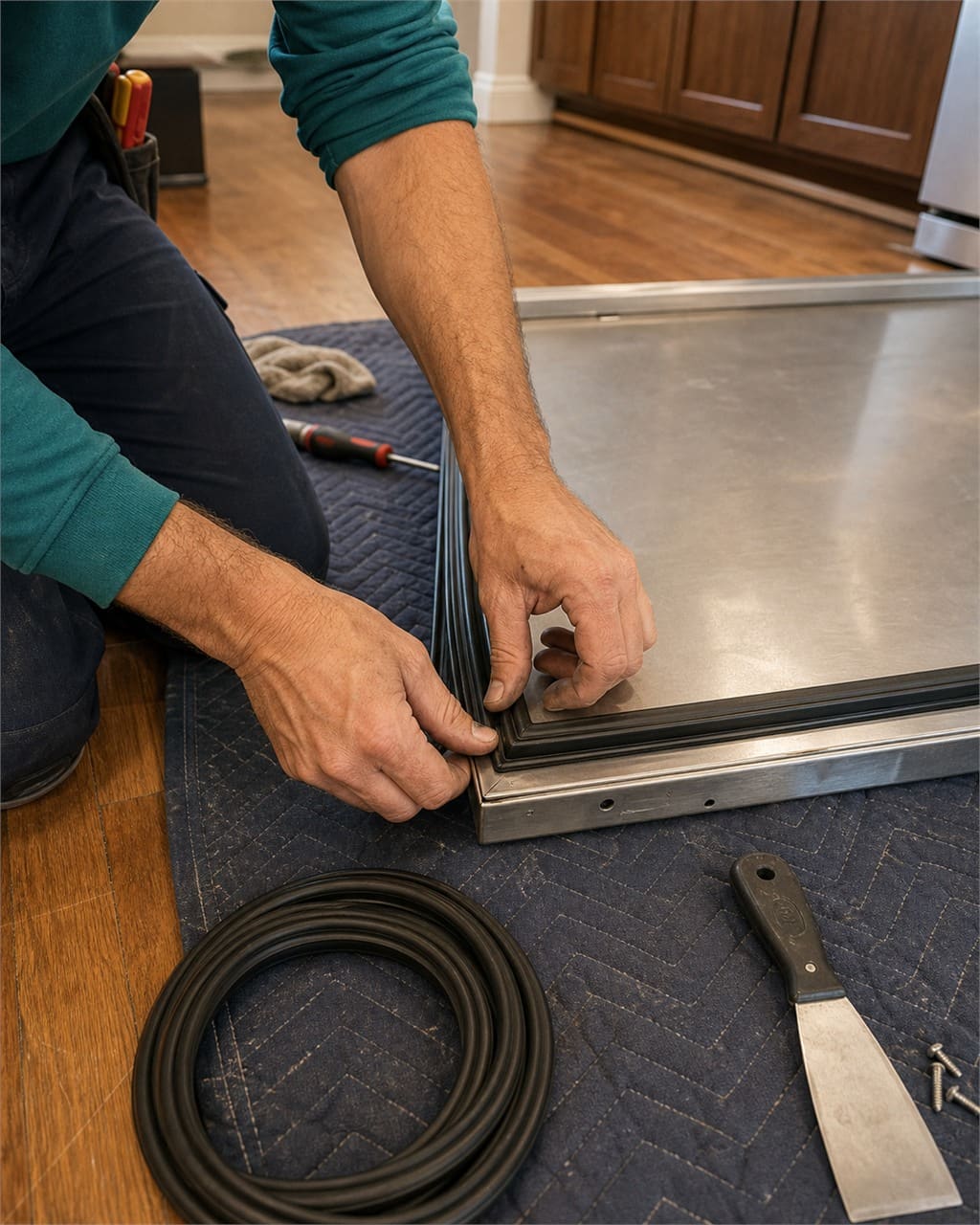

Door gaskets & frost
A hardened or torn magnetic gasket lets warm room air in, which shows as edge frost, sweating, and a compartment that never quite holds temperature. New OEM gaskets fix most "running constantly" classics.
Sagging doors & hinges
Two decades of heavy panel-front doors wears the hinges and cams, so the door drops and stops sealing. Hinge cartridges and a careful door re-alignment bring the gasket back into contact.
Condenser & fan
The grille-top condenser packs with dust and pet hair, and the condenser fan motor wears out. A clogged coil makes the unit run warm and the compressor run hot — often mistaken for a dead sealed system.
Defrost system & drain
A failed defrost heater, thermostat, or timer lets the evaporator ice over until airflow chokes. A blocked defrost drain shows up as water or an ice slab under the freezer drawer.
Evaporator & airflow
A frosted-over evaporator or a failed evaporator fan starves one compartment of cold air — the classic "freezer fine, fridge warm" complaint on a dual-refrigeration BI.
Dual-compressor sealed system
Either of the two sealed systems can lose charge or tire after 15+ years. Pressure and electrical testing tells us which circuit is at fault before any sealed-system work is quoted.
Ice-maker module
The freezer-section ice maker on a classic BI is a common wear point — inlet valve, fill tube, and module. We diagnose the water path before replacing electronics.
Control boards & latches
Original control boards and the magnetic door latches/switches age out, causing odd temperatures, lights that stay on, or doors that read as open. Most are still serviceable with genuine OEM parts.
Classic BI symptom → cause → action
Match what your 600/700-series built-in is doing to the most likely cause and the right next step.
| Issue | Likely cause | What we do |
|---|---|---|
| Refrigerator warm, freezer fine | Frosted evaporator, failed evap fan, or defrost fault | Test defrost circuit and evaporator fan, restore airflow |
| Running constantly / edge frost | Worn or torn door gasket, sagging door | Replace the OEM gasket and re-align the door and hinges |
| Both sides slowly warming | Clogged condenser or weak condenser fan | Deep-clean the coil, test and replace the fan motor |
| Water or ice under the drawer | Blocked defrost drain or failed defrost heater | Clear the drain line, test the heater and thermostat |
| One compartment will not cool | Charge loss in one of the two sealed systems | Pressure-test both circuits before any sealed-system quote |
| Lights/temps acting up | Aging control board or magnetic door latch | Diagnose board and latch electrically, fit OEM parts |
On a dual-refrigeration BI, a warm fridge with a perfect freezer is almost always airflow or defrost — not a dead compressor. Diagnosis first is what keeps a classic repair honest.
$89 service call, waived when you book the repair. Every job is backed by a 365-day warranty on all labor and fitted with genuine OEM Sub-Zero parts — the same gaskets, hinges, fans, and modules the 600/700 platform was built around, so an older unit keeps running like itself.
Classic BI-series repair: planning estimates
Ballpark ranges for the work we do most on 600- and 700-series built-ins. These are planning figures, not quotes — the on-site diagnosis sets the real price.
| Service in Campbell | Planning range | Typical time | Notes |
|---|---|---|---|
| Service call / diagnostic | $89 (waived with repair) | 45–90 min | Model, temperatures, airflow, sealed-system & electrical checks |
| Ice maker / water line | $275–$850 | 1–3 hrs | Inlet valve, fill tube or ice-maker module |
| Door gasket / frost line | $400–$900 | 1–3 hrs | Depends on model and gasket availability |
| Control board / sensor | $350–$1,250 | 1–4 hrs | Quoted after electrical diagnosis |
| Compressor / sealed system | $1,450–$3,600 | 2–6 hrs + parts | Requires pressure & electrical evidence |
These are planning estimates, not quotes — final pricing depends on model, parts, access and on-site diagnosis. The $89 service call is waived when you approve the repair.
Repair vs. replace on an older Campbell built-in
Many San Tomas and older Campbell homes were built or remodeled around a custom-panel Sub-Zero, and a replacement is rarely a like-for-like swap — cabinet openings, panel sizes, and water/electrical positions were all built to that specific BI. Pulling a working cabinet to chase a $400 gasket or a $300 fan motor rarely makes sense.
Our rule of thumb is simple. A classic BI with a sound cabinet and at least one healthy sealed system is almost always worth repairing — gaskets, hinges, fans, defrost parts, boards, and ice-maker components are all standard wear items. The honest replace conversation only comes up when both sealed systems are failing on a very high-hour unit, and even then we lay out the numbers before you decide.
When we pull a built-in for service, we protect the flooring and cabinet sides and ease the unit out on its rollers so the custom panels and surrounds are not stressed — a cabinet-safe pull-out matters as much as the repair on a tight Campbell kitchen.
Keeping a classic running is mostly about airflow and gaskets. Our Sub-Zero maintenance guide walks through the condenser cleaning and door checks that prevent most of these failures, and if the freezer ice maker is the issue, the ice maker troubleshooting page covers the water-side checks first.
Reviews
Classic BI repairs around Campbell
Independent Sub-Zero repair · Campbell & the Santa Clara Valley
Our 20-year-old BI-42 was frosting along the door edge and running nonstop. They replaced the gasket with a genuine Sub-Zero part, re-aligned the sagging door, and the $89 service call came off once we approved it. Cabinet and floor were protected the whole time.
Classic 600-series built-in, fridge warm but freezer perfect. I assumed compressor and braced for a replacement quote. It was a frosted evaporator and a tired defrost heater — fixed the same week with OEM parts and a 365-day labor warranty. Saved us thousands.
BI-48 that was running hot on top and cycling constantly. Turned out the condenser was packed and the fan motor was failing — not the sealed system someone else wanted to replace. Honest diagnosis, fair price, and they eased it out without scratching the panels.
FAQ
Classic BI-series repair FAQ
Is it worth repairing a classic Sub-Zero built-in?
In most cases, yes. A classic BI-30/36/42/48 with a sound cabinet and at least one healthy sealed system is built around standard wear items — door gaskets, hinges, condenser and evaporator fans, defrost parts, control boards, and ice-maker components — that are far cheaper to replace than the whole unit. Because these built-ins are fitted to custom cabinetry, a like-for-like replacement is expensive and disruptive. We only raise the replace conversation when both dual-refrigeration sealed systems are failing on a very high-hour unit, and we show you the numbers either way.
Which models count as the classic BI line?
The classic Built-In family is the 36-, 42- and 48-inch over-and-under and side-by-side units built on the Sub-Zero 600 and 700 series, tagged BI-30, BI-36, BI-42 and BI-48. The model and serial label is inside the fresh-food compartment, usually on the upper left wall or ceiling. Tall single-door units are the newer integrated column platform instead.
My classic BI fridge is warm but the freezer is fine — what is wrong?
On a dual-refrigeration built-in this is almost always airflow or defrost, not a dead compressor. A frosted-over evaporator, a failed evaporator fan, or a defrost heater/thermostat fault stops cold air reaching the refrigerator side while the freezer keeps working. We test the defrost circuit and the evap fan first, which resolves most of these calls without sealed-system work.
How often do classic Sub-Zeros need new door gaskets?
The magnetic door gaskets are wear items and typically harden or tear somewhere around the 10–15-year mark, sooner if the door has started to sag. A failing gasket shows as edge frost, condensation, and a unit that runs constantly. We replace it with a genuine OEM gasket and re-align the door so it seals fully again, all under the 365-day labor warranty.
Why does my BI run constantly or feel warm to the touch on top?
The grille-top condenser on a 600/700-series built-in packs with dust and pet hair, and the condenser fan motor wears with age. A clogged coil makes the compressor run hot and the unit run nonstop — which is often mistaken for a failing sealed system. A deep coil cleaning and a fan check usually restore normal cycling, and it is the simplest fix on the list.
Do you use genuine Sub-Zero parts on older built-ins?
Yes. We fit genuine OEM Sub-Zero gaskets, hinge cartridges, fan motors, defrost components, control boards and ice-maker parts so an older BI keeps the tolerances and control logic it was designed around. OEM parts are also why the 365-day labor warranty holds up on a 15- or 20-year-old unit.
Can you pull a built-in out without damaging the cabinet?
That is part of the job. We protect the flooring and cabinet sides, disconnect the water and power safely, and ease the unit out on its rollers so the custom panels and surrounds are not stressed. Most service — gaskets, fans, defrost, boards — needs only a partial pull, and we reseat the unit square so the doors close cleanly afterward.
How much does classic BI-series repair cost in Campbell?
It depends on the fault. A condenser cleaning and fan are at the lower end, door gaskets and defrost parts sit in the middle, and a sealed-system repair on one of the two circuits is the most involved. Our pricing table shows planning ranges, and the $89 service call is waived when you approve the repair, with 365 days of labor warranty on the work.
