Sub-Zero Leaking Water? Where It Is Coming From in Campbell
A Sub-Zero that leaks water almost always traces to one of five places: a clogged or frozen defrost drain dripping inside the cabinet, the ice-maker fill tube or inlet valve, the water-filter head, a cracked or overflowing drain pan, or condensation sneaking past a tired door gasket. Find which one before you mop — water pooling under a built-in in a Campbell kitchen reaches custom cabinetry and flooring fast. Shut the supply at the stop if it is the water line, then book a specialist: $89 service call, waived with repair.
Quick answers
Sub-Zero leaking water: fast answers
Where the water actually is tells you which part is leaking. Match your situation first.
Water pooling on the floor in front of the unit?
A puddle that creeps out from under the toe-kick is most often a clogged or frozen defrost drain overflowing inside, or a cracked drain pan. On a built-in it can also be the ice-maker supply line behind the cabinet. Shut the water stop if you suspect the supply, and dry the area so you can see whether it returns.
Water or ice slab under the freezer drawer?
That is the defrost drain. Every Sub-Zero sheds meltwater during its defrost cycle down a small drain to an evaporation pan. When the drain clogs with debris or freezes shut, the water backs up and refreezes into a sheet under the bottom drawer.
Water dripping inside the fresh-food compartment?
Look up. Interior dripping is condensation from a door gasket that no longer seals, or a blocked drain at the back wall. Both let humid Santa Clara Valley air condense and run down the liner instead of draining away.

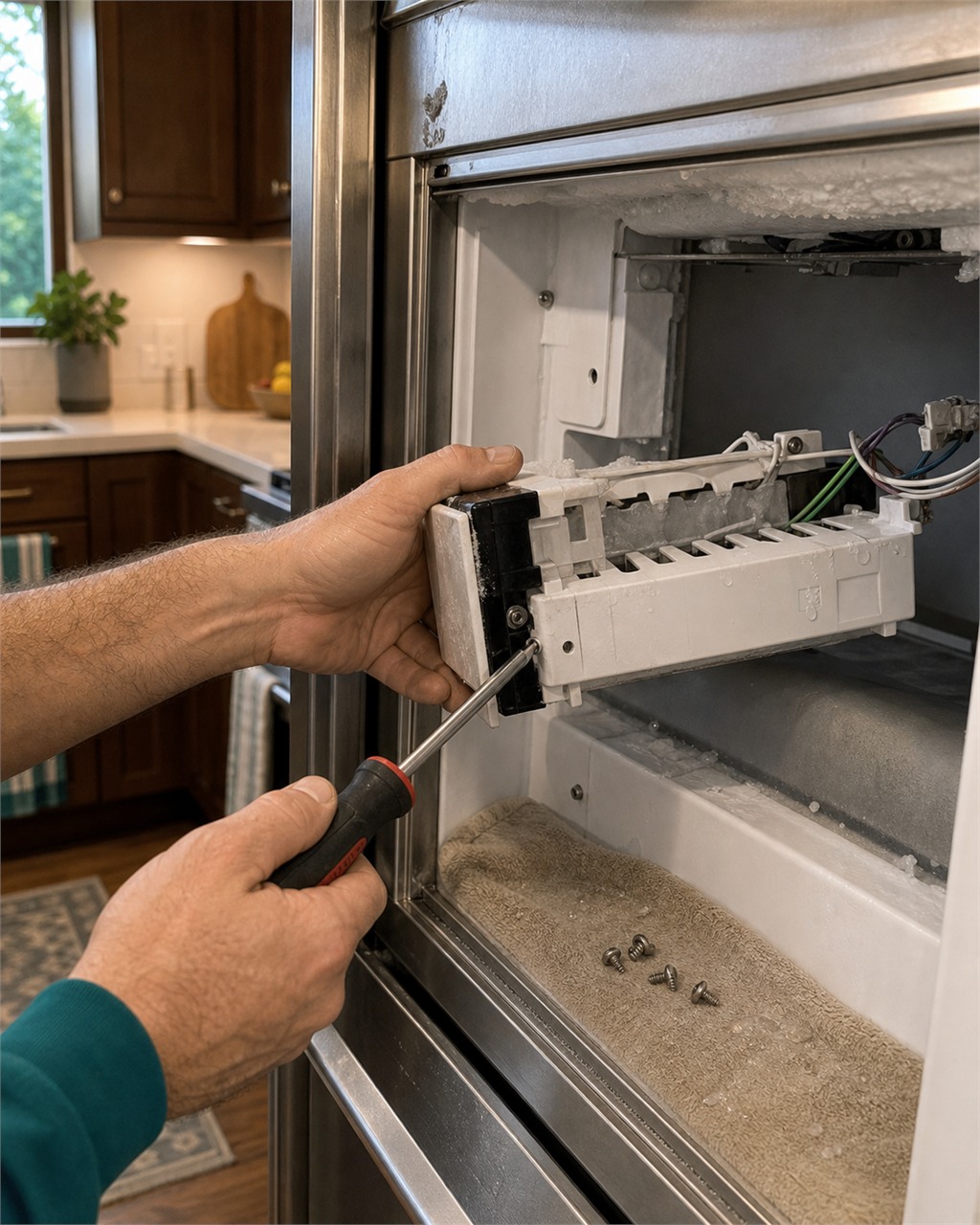

Water near the ice maker or water dispenser?
A weeping inlet valve, a cracked fill tube, or a loose water-filter head are the usual ice-side leaks. Campbell hard water scales these fittings, and a hairline split often shows up only when the valve cycles open.
Is a built-in leak urgent?
Yes. A freestanding fridge leak is a nuisance; a built-in leak runs into custom cabinet sides and hardwood before you notice. Catch the source, shut the supply if it is the water line, and book promptly.
Where the water is → likely source → what to do
Use the location of the water to narrow the leak before any panel comes off.
| Where you see water | Likely source | What to do |
|---|---|---|
| Puddle on the floor at the toe-kick | Overflowing defrost drain, cracked drain/evaporation pan, or the supply line behind the unit | Dry it, watch where it returns, and shut the water stop if it tracks to the supply line |
| Ice slab or water under the bottom freezer drawer | Clogged or frozen defrost drain backing up inside the freezer | Thaw and flush the drain; recurring freeze-ups mean the drain heater or routing needs service |

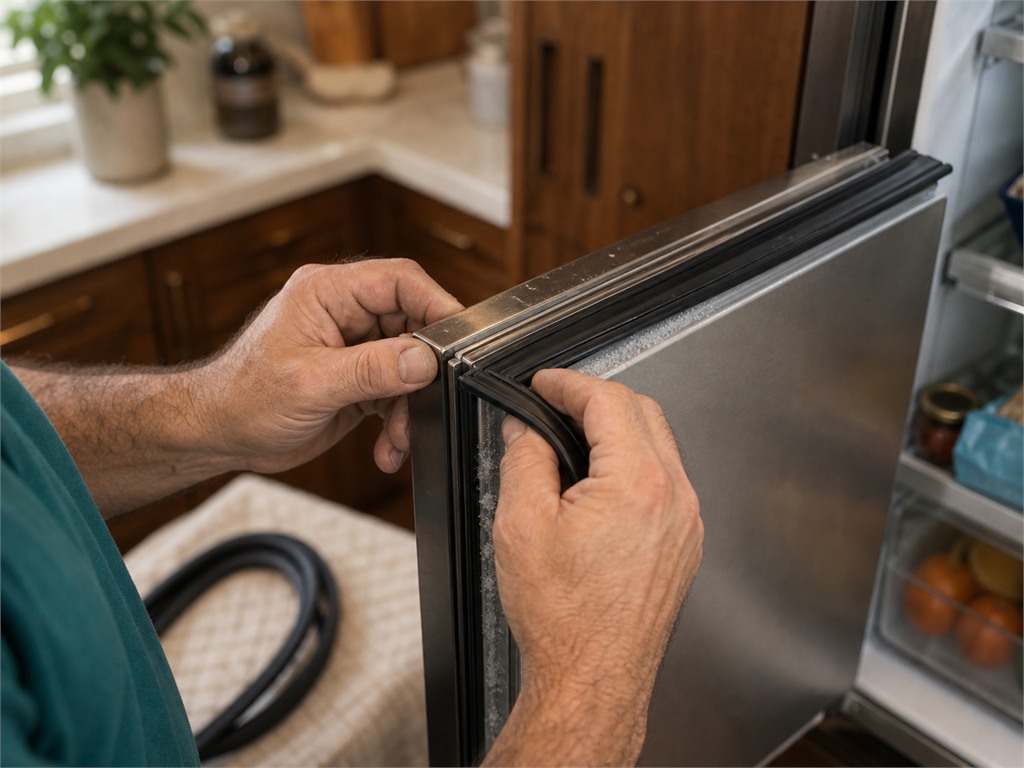

| Dripping down the inside back wall | Blocked defrost drain port or condensation from a failing door gasket | Clear the drain port; check the gasket seal with a dollar-bill test |
| Wet around the ice maker / fill area | Cracked fill tube, weeping inlet valve, or unseated water filter | Shut the supply, reseat the filter, and have the valve and fill tube tested |
| Water at the water-filter housing | Loose, cross-threaded, or scaled filter head O-ring | Reseat a genuine OEM filter; if it still weeps, the head O-ring needs replacing |
| Sweating or frost on the exterior cabinet | Humidity leaking past a hardened gasket — not a true plumbing leak | Replace the gasket so the seal stops condensing room air |
A clogged defrost drain mimics a plumbing leak from the kitchen floor — confirming the drain and pan before chasing the water line is what keeps a Sub-Zero leak repair from being paid for twice.
Do not slide a built-in Sub-Zero out across hardwood to "check behind it" — a loaded column is heavy enough to gouge the floor and stress the water line, turning a small drip into a burst fitting. Do not chip at an ice slab under the freezer drawer with a knife; you can puncture the drain heater or the evaporator. And do not keep running the ice maker if water is pooling near the fill area — switch it off and shut the supply stop so the cabinet and flooring stay dry until the source is found.
Five homeowner checks before you call
Safe checks that resolve a fair share of "Sub-Zero leaking water" calls in Campbell. If water returns after these, the drain, valve or pan needs hands-on service.
- 1Locate the source
Dry everything, lay a paper towel where the water appears, and watch for an hour. Floor puddle, under-drawer ice, interior drip, or wet at the fill area each point to a different part — knowing which one saves a misdiagnosis.
- 2Clear and flush the defrost drain
If it is under-drawer ice or an interior back-wall drip, the small defrost drain is likely blocked. Empty the freezer, let any ice slab thaw, and gently flush the drain port at the base of the rear panel with warm water until it runs freely.
- 3Check the water filter seating
Reseat the internal filter until it clicks. A filter that is loose, cross-threaded, or scaled by Campbell hard water weeps at the head. Use a genuine OEM filter — aftermarket cartridges are a common source of slow drips.
- 4Inspect the water line and inlet valve
With the unit eased forward only as far as the line safely allows, look at the saddle valve or supply stop, the inlet valve, and the fill tube for moisture, mineral crust, or a hairline split. If anything is wet at the valve, shut the supply stop.
- 5Dry it and monitor 24 hours
After clearing the drain, reseating the filter, and checking the line, dry the area completely and watch for a full day. A leak that returns is telling you the drain, valve, pan, or gasket needs a technician — not another mop.
The frozen defrost drain — Campbell’s most common hidden leak
The single most misread Sub-Zero leak is the frozen defrost drain. As the freezer runs through its timed defrost, meltwater is supposed to flow down a narrow drain channel to an evaporation pan near the compressor. When debris, or repeated short defrost cycles, let that channel ice over, the water has nowhere to go: it backs up, freezes into a slab under the bottom drawer, and eventually overflows onto the kitchen floor at the toe-kick.
Homeowners see the floor puddle and assume a burst water line. In reality the supply line is dry and the fix is the drain itself — clearing it, confirming the small drain heater is working, and checking the routing so it does not refreeze. On the Classic BI 600/700-series units common in older San Tomas and Cambrian-adjacent homes, a hardened drain pan can also crack with age and weep from a different spot entirely, which is why we confirm the pan as well as the drain.
If the leak is paired with frost building inside, read our not-cooling diagnosis, since a defrost fault can warm the box as it leaks; every drain and pan repair we complete carries a 365-day labor warranty.
Typical Sub-Zero leak repair costs in Campbell
Planning ranges, not quotes. Drain clearing and filter-head fixes sit at the lower end; inlet valves and fill-tube work fall in the middle. The $89 service call is waived when you approve the repair.
| Service in Campbell | Planning range | Typical time | Notes |
|---|---|---|---|
| Service call / diagnostic | $89 (waived with repair) | 45–90 min | Model, temperatures, airflow, sealed-system & electrical checks |
| Ice maker / water line | $275–$850 | 1–3 hrs | Inlet valve, fill tube or ice-maker module |
| Door gasket / frost line | $400–$900 | 1–3 hrs | Depends on model and gasket availability |
| Control board / sensor | $350–$1,250 | 1–4 hrs | Quoted after electrical diagnosis |
| Compressor / sealed system | $1,450–$3,600 | 2–6 hrs + parts | Requires pressure & electrical evidence |
These are planning estimates, not quotes — final pricing depends on model, parts, access and on-site diagnosis. The $89 service call is waived when you approve the repair.
Why Sub-Zero leaks track to Campbell’s water and housing
Two local realities shape how a Sub-Zero leaks here. The first is hard water. Santa Clara Valley supply is mineral-rich, and that scale builds inside inlet valves, around water-filter head O-rings, and along ice-maker fill tubes faster than the spec sheet assumes. A valve that has crusted with scale no longer seats cleanly when it closes, so it weeps a little every cycle — the slow, intermittent leak that drives Campbell homeowners up Campbell Avenue looking for answers. Changing the filter on schedule and using a genuine OEM cartridge is the cheapest leak prevention there is.
The second is the city’s split housing stock. The long-tenured kitchens around San Tomas and the Cambrian-adjacent streets run classic built-ins with original drain pans that have hardened over fifteen to twenty-five years and can crack at a seam. The remodel-era homes near the Pruneyard and Downtown Campbell hold newer integrated columns dropped into custom millwork, where a leak has the shortest possible path to a hardwood floor or a cabinet side. In both, the priority is the same: find the source, stop it, and dry the structure before the water does lasting damage.
Because we are an independent Sub-Zero specialist working Campbell and the wider Santa Clara Valley every week — including Los Gatos, Saratoga and the 95008 streets near the Los Gatos Creek Trail — we see these leak patterns constantly and arrive with the OEM drain parts, valves and gaskets to fix them in one visit. If the leak is at the ice maker, our ice maker troubleshooting page covers the fill-tube and valve checks in depth, and the cost guide lays out planning ranges before you book.
Reviews
Campbell water-leak repairs, in their words
Independent Sub-Zero repair · Campbell & the Santa Clara Valley
Water kept pooling in front of our older built-in and we were sure a pipe had burst. It turned out to be a frozen defrost drain backing up under the freezer drawer. They cleared it, checked the drain heater, and the floor has stayed dry since. The $89 call was waived once we approved the work.
Our integrated column was dripping near the ice maker onto a brand-new hardwood floor. The inlet valve had scaled up from the hard water and was weeping every cycle. Genuine Sub-Zero valve, shut the supply before any more damage, and explained the 365-day warranty. Quick and careful.
Slow leak inside the fridge that I assumed was the filter. They found the filter was fine but the defrost drain port was blocked and the gasket was letting humid air condense. Cleared the drain, replaced the gasket, no upsell to anything bigger. Exactly the honest read I wanted.
FAQ
Sub-Zero leaking water FAQ
Why is my Sub-Zero leaking water onto the floor?
A floor puddle at the toe-kick is most often an overflowing defrost drain that has clogged or frozen inside, a cracked drain or evaporation pan, or the ice-maker supply line behind the cabinet. Dry the area and watch where the water returns; if it tracks to the water line, shut the supply stop. On built-ins the water reaches custom cabinetry quickly, so finding the source promptly matters more than on a freestanding fridge.
Why is there ice or water under my Sub-Zero freezer drawer?
That is the defrost drain. Meltwater from the freezer’s defrost cycle is supposed to flow down a small drain to an evaporation pan. When the drain clogs or freezes shut, the water backs up and refreezes into a slab under the bottom drawer. Thawing and flushing the drain clears it; if it keeps returning, the small drain heater or the drain routing needs service.
My Sub-Zero is dripping water inside the fridge — what causes that?
Interior dripping is usually a blocked defrost drain port at the back wall or condensation from a door gasket that no longer seals. A clogged port sends meltwater down the liner instead of out to the pan, and a tired gasket lets humid air in to condense. Clearing the drain port and checking the gasket seal with a slip of paper resolves most interior drips.
Is a leaking Sub-Zero water line an emergency in a built-in?
It should be treated as urgent. A weeping inlet valve or a cracked fill tube can drip steadily into the cabinet sides and flooring around a built-in, where the damage is hidden until it is significant. Shut the water at the saddle valve or supply stop and book a repair promptly to avoid cabinet and floor damage.
Can a water filter cause my Sub-Zero to leak?
Yes. A filter that is loose, cross-threaded, the wrong cartridge, or scaled by Campbell’s hard water can weep at the head. Reseat a genuine OEM filter until it clicks; if it still leaks, the head O-ring has likely failed and needs replacing. Aftermarket filters are a common and avoidable source of slow drips.
How do I clear a Sub-Zero defrost drain myself?
Empty the freezer, let any ice slab thaw, and gently flush the drain port at the base of the rear freezer panel with warm water until it runs freely. Avoid chipping at ice with anything sharp, which can puncture the drain heater or evaporator. If the drain refreezes within days, it points to a drain-heater or routing fault that needs a technician.
How much does it cost to fix a leaking Sub-Zero in Campbell?
Planning ranges run from a lower-cost defrost-drain clearing or filter-head fix, to roughly $275–$850 for an ice-maker inlet valve or fill-tube repair, up to higher figures if a cracked drain pan or sealed-system component is involved. The $89 service call is waived when you approve the repair, and every repair carries a 365-day labor warranty.
Do you use genuine Sub-Zero parts for leak repairs?
Yes. We fit genuine OEM Sub-Zero inlet valves, fill tubes, drain components, filter heads and gaskets so each fitting matches your unit’s water path and clearances exactly, and we back the labor for 365 days. We are an independent specialist, not factory-authorized, but we run factory-spec diagnostics on every leak.
